TECHNICAL PARAMETERS
❖ The technical data based on 25℃ ambient temp. 20℃ water inlet temp
❖ Refrigerant: R404A (R22, R134a, R507 is optional)

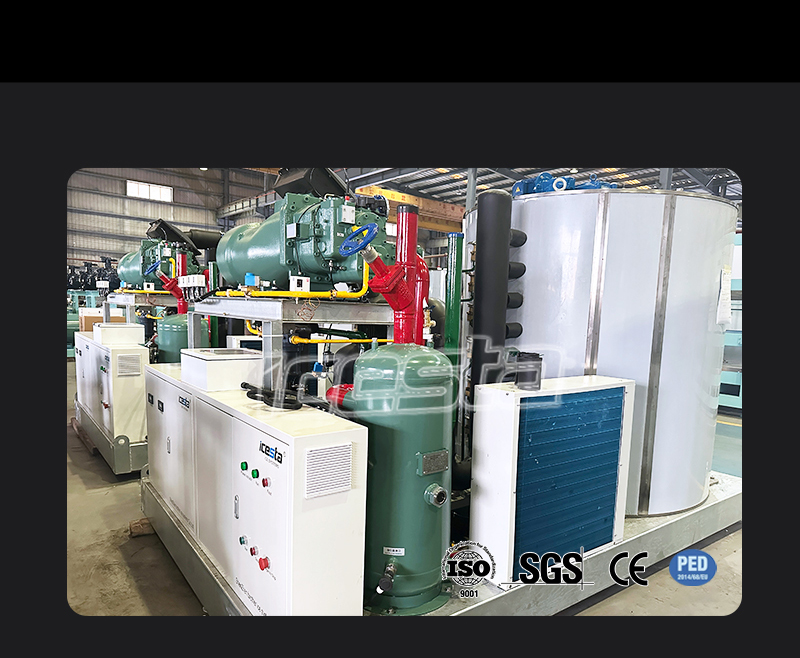

8t, 10t, 15t, 20t/24h
| Model | IF8T-R4A | IF10T-R4A | IF15T-R2A | IF20T-R4A |
| Ice output | 8t/24h | 10t/24h | 15t/24h | 20t/24h |
| Cooling capacity | 57.1kw | 72kw | 97kw | 128.4kw |
Evaporation temperature | -20°C | -20°C | -20°C | -20°C |
Condensing temperature | 40°C | 40°C | 40°C | 40°C |
| Input total power | 35.61kw | 46.51kw | 59.47kw | 73.56kw |
| Compressor power | 26.6kw | 37.5kw | 50.1kw | 59.7kw |
| Pump power | 0.37kw | 0.37kw | 0.37kw | 0.75kw |
| Reducer power | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Compressor fan power | 7.89kw | 7.89kw | 8.25kw | 12.36kw |
| Unit size | 2200*1600*1870mm | 3200*2000*2140mm | 3200*1700*2410mm | 4000*2100*2200mm |
ICESTA
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
* Experiences & History:
Decadal Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
ISO 9001, CE, PED, ASME (U.S ) Certificates etc
High Technology enterprise Certificate
FAQ
FAQ (Frequently Asked Questions)
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What's the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
